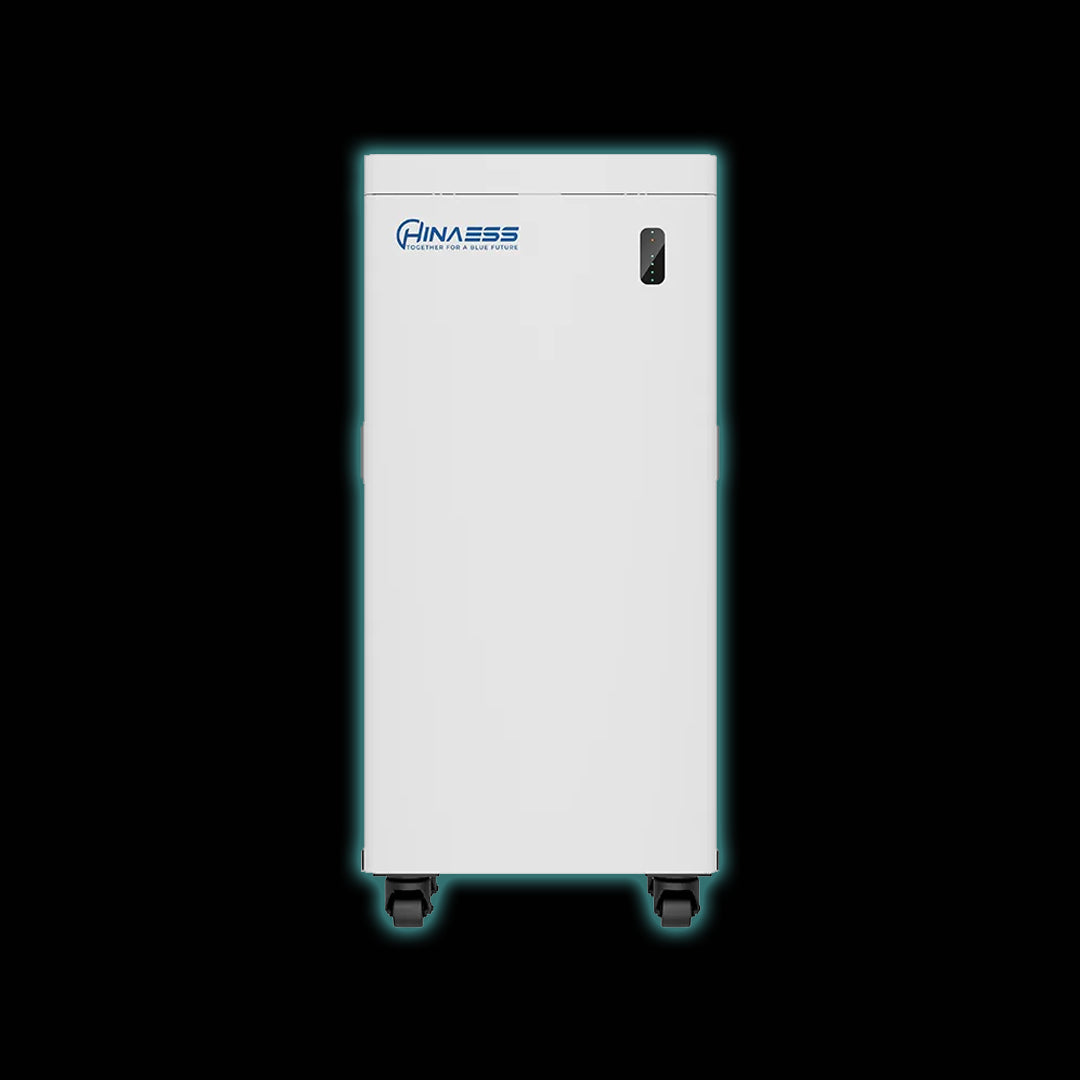

HinaESS 16.076kWh PowerGem Max Lithium Battery

The HinaESS 16.076kWh PowerGem Max is a high capacity, high power lithium energy storage solution engineered for demanding residential, commercial, and industrial solar applications. Designed with advanced Lithium Iron Phosphate (LFP) cells, an intelligent Smart BMS, and built in fire suppression, the PowerGem Max delivers exceptional safety, performance, and long-term reliability.

With 200A continuous discharge capability, up to 8000 cycles, and scalability to 35 units in parallel, the PowerGem Max is ideal for large homes, businesses, farms, and energy?intensive environments requiring stable, expandable energy storage.

Key Features and Benefits

• 16.076kWh high capacity lithium energy storage for extended backup and daily cycling
• Ultra safe LFP battery chemistry with superior thermal stability
• 200A continuous discharge power for high load applications
• Up to 8000 cycles at 90% depth of discharge for long service life
• Expandable up to 35 batteries in parallel without additional controllers
• Smart BMS with auto addressing for reliable master slave operation
• Built in fire suppression system for enhanced safety
• WiFi and Bluetooth monitoring support with free monitoring access
• Optional integrated heating system for low temperature environments
• Flexible installation options: stackable, floor standing, or wall mounted
• 10 year manufacturer warranty

Technical Specifications

Model: PowerGem Max
Rated Energy: 16.076kWh
Rated Capacity: 314Ah
Nominal Voltage: 51.2V
Charge Voltage: 57.2V
Cell Type: Lithium Iron Phosphate (LFP)
Maximum Continuous Discharge Current: 200A
Peak Discharge Current:

• 210A for up to 2 minutes
• 220A for 500 milliseconds
  Maximum Charge Current: 160A
  Depth of Discharge: 90%
  Cycle Life: Up to 8000 cycles
  Operating Temperature: -20°C to +55°C
  Humidity Range: 5%–85% RH (non condensing)
  Ingress Protection: IP20
  Dimensions: 900 × 445 × 230 mm
  Weight: 120 kg

Inverter Compatibility

The PowerGem Max supports CAN and RS485 communication and is compatible with a wide range of leading inverter brands, including:

Victron, Luxpower, Deye, Voltronic, SMA, Goodwe, Growatt, Sofar, SolArk, SRNE, Must

Safety, Protection and Certification

• Overcharge, overdischarge, overcurrent, voltage, and temperature protection
• Short circuit and reverse connection protection
• Charge balancing and low state of charge protection
• Built in fire suppression system
• CE Certified
• UN38.3 Transport Safety
• IEC 62619 Compliant

Ideal Applications

• Large residential solar battery systems
• Commercial and industrial energy storage
• Load shedding and long duration backup power
• Hybrid and off grid solar installations
• Scalable battery banks for high?demand environments

Why Choose the HinaESS PowerGem Max

The HinaESS 16.076kWh PowerGem Max is designed for users who require maximum storage capacity, high discharge power, advanced safety, and long lifespan in a single lithium battery solution. With integrated fire protection, intelligent system management, and unmatched scalability, it offers reliable performance for today’s energy needs and future expansion.

A premium energy storage solution built for power, safety, and long term independence.
